APC Back Ups 1600va BX1600MI

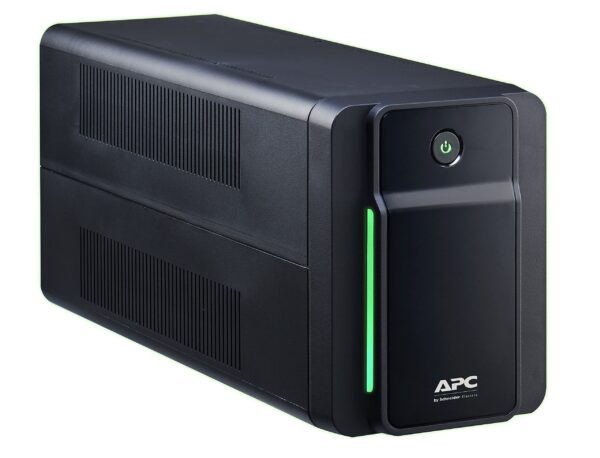

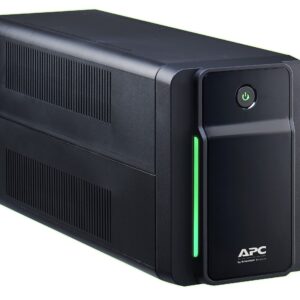

APC BACK UPS 750VA BX750MI

$115.00

Category:
Add to wishlist

Description

Main Input Voltage 230 V
Other Input Voltage “220V”
240V
Main Output Voltage 230 V
Other Output Voltage 220V
240V
rated power in W 500W
Brand effect in VA 750 VA
Product type uninterruptible power supply (UPS)
Input Connection Type “IEC 320” “C14”
output connection type 6 “IEC 320” “C13”
2 IEC Jumpers
Cable length 1.8 m
number of cables 1
battery type Lead-acid battery
accompanying equipment USB cable
Documentation CD
Smart UPS signaling RS-232 cable
Product series Smart UPS
Product information
communication port SmartSlot
battery and lifetime
Efficiency
View Efficiency Graph
Extended runtime 0
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 3 hours
Number of battery replacement quantity 1
battery life 3…5 years
Battery replacement
RBC48
Battery charger power 49 W rated
generally
Number of power modules 0
Number of power module filled slots 0
Number of power module free slots 0
Redundant No
physical
Color Black
Height 15.75 cm
Width 13.8 cm
Depth 35.81 cm
Weight 13.18 kg
Assembly location Front
Mounting preference No preference
Mounting form Not rack-mountable
Two post mountable 0
USB compatible Yes
input
input voltage limits “151…302 V” Adjustable
“160…280 V”
network frequency 50/60 Hz +/- 3 Hz auto-sensing
output
harmonic distortion Less than 5% at full load
Maximum configurable power in VA 750 VA
Maximum configurable power in W 500W
Transfer time 4 ms typical : 8 ms maximum
UPS type Line interactive
Wave type Sine waves
output frequency “47…53 Hz” for 50 Hz nominal sync to mains
“57…63 Hz” for 60 Hz nominal sync to mains
conformity
Product certifications CE
EAC
RCM
VDE
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
environmentally
acoustic level “40dBA”
current heat loss 90 Btu/h
Operating height “0…10000 ft”
Ambient temperature during operation 0…40 °C
Ambient temperature during storage -15…45 °C
storage height 0.0000000000…15240.0000000000 m
relative humidity 0…95%
Relative humidity during storage 0…95%
communication and management
Dashboard Multifunction LCD status and control console
Emergency power off Optional
Number of module places 1
alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Surge protection and filtering
Surge energy rate 540 J
Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Packaging information
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 Height 30.1 cm
Package 1 Length 27.8 cm
Package 1 Length 49.9 cm
Package 1 Weight 14.23 kg
Device type of package 2 PAL
Number of units in package 2 32
Package 2 Height 130.6 cm
Pack 2 Width 100 cm
Package 2 Length 120 cm
Package 2 Weight 464 kg
SCC14 731304269069
