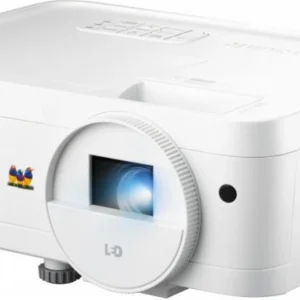

VIEWSONIC PROJECTOR LS510WE
$540.00
3,800 ANSI Lumens WXGA LED Business/Education Projector
- 3rd generation LED technology for greater sustainability
- Maintenance free: 30,000-hour light source life and less power consumption
- 3,800 ANSI Lumens offering bright images in any environment
- Ease of use: instant power on/off and convenient software update
- Wide color gamut to present the best
3rd Generation LED Technology for Greater Sustainability
With the 3rd generation LED technology, the LS510WE frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future.
- Description
Description
3,800 ANSI Lumens WXGA LED Business/Education Projector
- 3rd generation LED technology for greater sustainability
- Maintenance free: 30,000-hour light source life and less power consumption
- 3,800 ANSI Lumens offering bright images in any environment
- Ease of use: instant power on/off and convenient software update
- Wide color gamut to present the best
3rd Generation LED Technology for Greater Sustainability
With the 3rd generation LED technology, the LS510WE frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future.

Saving More with the Advanced LED Technology
Adopting ams OSRAM’s Ostar Projection Power LED technology, the LED projector is both energy saving and cost efficient, consuming less energy than competing lamp-based projectors.

Enhanced Brightness for Business/Education Environments
Thanks to the latest LED technology, the LS510WE achieves a major brightness breakthrough to 3,000 ANSI Lumens. With extreme-high contrast ratio of 3,000,000:1, the projector ensures bright and detailed images in dim or lit environments.


Present the Best with Vibrant Colors
Impress any audience with ViewSonic’s exclusive color technology, covering wide color gamut, Bring your presentation with a true-to-life color experience.

Efficient Instant Power On/Off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

Versatile Application
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or floors.

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.
Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.

USB Type A Power Supply
The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.

Non-stop 24/7 Operation
The advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making the projector ideal for applications that require continuous use.

Sealed Optical Engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.

Dimension & I/O Ports
- LED Indicator
- Keypad
- Power Button
- Zoom/Focus Ring
- Front IR
- Lens
- Audio In
- Audio Out
- HDMI
- USB-A (5V/2A, Service)
- Computer In
- Monitor Out
- RS232
SPECIFICATIONS
- Specification
Projection System: 0.65” WXGA
Native Resolution: 1280×800
Brightness: 3800 (ANSI Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 30000
Lens: F=2.56-2.68, f=22-24.1mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.55-1.70
Optical Zoom: 1.1X
Digital Zoom: 0.8x-2.0x
Image Size: 30″-300″
Throw Distance: 1m-10.98m
(100″@3.34m)
Keystone: +/- 40° (V)
Audible Noise (Normal): 34dB
Audible Noise (Eco): 28dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz - Input
Computer in (share with component): 1
HDMI: 1
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1 - Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 2W
USB Type A (Power): 1 (5V/2A)
